• Product Description
    Company Info.
    <
    >
    <
    >
    Basic Info.
    Model:
    ST-E200
    Action object:
    Solid samples
    Application field:
    general
    Feed particle size:
    <45 mm
    Discharge particle size:
    0.5 mm
    Weight:
    70 kg
    Motor power:
    1.1 kw
    Crushing degree:
    Rough crusher
    Driving mode:
    electric
    Product Description

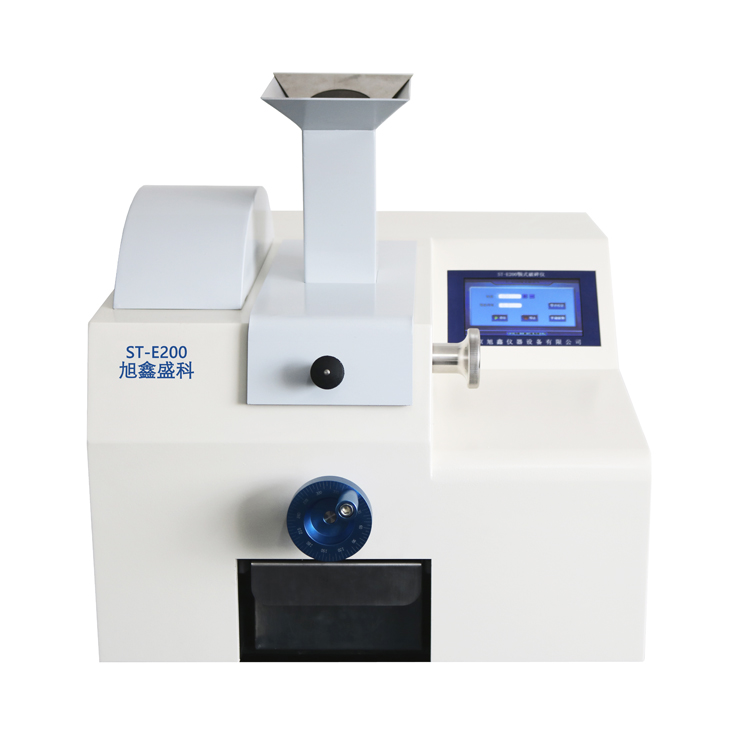

    ST-E200 bench top jaw crusher is an instrument for solid sample preparation in laboratory. It has the characteristics of low noise, fast crushing speed and fast sampling particle size adjustment device. Rapid coarse crushing and pre-crushing of brittle, hard, medium hard, hard and ductile materials, such as ores, cores, rocks, slag, soil, ceramics, brittle material products, dried shells, dried sea cucumbers and other samples.



    product application
    ◆  Geology and minerals: rocks, granite, basalt, silicate, etc.
    ◆  Glass industry: glass, raw materials, etc.
    ◆  Ceramic industry: sintered ceramics, electric ceramics, clay, etc.
    ◆  Construction industry: slag, stone, cement, etc.
    ◆  Environmental industry: soil, solid waste, etc.
    ◆ Marine life: dried shells, dried sea cucumbers, etc.

    operating principle

     The prepared sample enters between the two jaws, the jaws crush the sample, and the crushed sample falls into the collection box along the wedge cavity under the action of gravity. The sample size depends on the adjusted gap between the two jaws, and the adjustable jaw gap ensures the crushing effect of the sample.

    technical feature

    ◆ Desktop design, saving experimental space

    ◆ Zero point correction to compensate for wear and ensure the accuracy of sample fineness

    ◆ A variety of different materials of crushing jaw plate can be selected to meet different experimental requirements

    ◆ The instrument has double safety lock protection. The instrument does not operate when the feed hopper is open or the collection box is not installed, ensuring the safety of the operator.

    ◆ Feed hopper has anti-splash design to prevent sample splashing

    ◆ Feed hopper can be reversed, manual disassembly, crushing chamber easy to clean

    ◆  With reverse function to ensure the normal operation of the instrument


    technical parameters

    ◆ Feed particle size 45mm

    ◆ Zero-calibration Yes

    ◆ Discharge particle size 0.5mm

    ◆ Speed 100-1000rpm adjustable

    ◆ Funnel can be inverted

    ◆ Sample size adjustment range 0-12mm (adjustable)

    ◆ Motor power 1.1kw

    ◆ Power supply 220V 50Hz

    ◆ Grinding kit material High manganese steel, stainless steel, alloy steel

     Zirconia, tungsten carbide, industrial plastics

    ◆ Net weight 70kg
